Custom the Field

Custom the field(parameter) to use other UI5 controls following below 2 ways:

Extends class sap.ui.integration.editor.fields.viz.VizBase

VizBase is the base class of ColorSelect, ShapeSelect, IconSelect and ImageSelect supplied by Editor. Eextends it to use the UI5 Control.

1. Extends class VizBase

   sap.ui.define([
   	"sap/ui/integration/editor/fields/viz/VizBase",
   	"sap/m/DateRangeSelection",
   	"sap/base/util/merge"
   ], function (
   	VizBase, DateRangeSelection, merge
   ) {
   	"use strict";

   	var CustomDateRangeSelection = VizBase.extend("sap.ui5.test.cardeditor.listcard.viz.CustomDateRangeSelection", {
   		metadata: {
   			library: "sap.ui5.test.cardeditor.listcard",
   			properties: {
   				displayFormat: {
   					type: "string",
   					defaultValue: ""
   				}
   			}
   		},
   		renderer: {
   			apiVersion: 2
   		}
   	});

   	return CustomDateRangeSelection;
   });


   VizBase has 2 default properties: "value" and "editable". Customer can add new properties, here is "dispalyFormat".

2. Implement the onInit function

   // create this._oControl and set up it
   CustomDateRangeSelection.prototype.onInit = function () {
   	this._oControl = new DateRangeSelection();
   };


   In the onInit function, set this._oControl to the UI5 control.

3. Add the set function of new properties

   CustomDateRangeSelection.prototype.setDisplayFormat = function (sValue) {
   	this.setProperty("displayFormat", sValue, true);
   	sValue = this.getDisplayFormat();
   	this._oControl.setProperty("displayFormat", sValue);
   	return this;
   };


4. Bind the properties to the UI5 control

   // bind propeties to this._oControl
   CustomDateRangeSelection.prototype.bindPropertyToControl = function (sProperty, oBindingInfo) {
   	VizBase.prototype.bindPropertyToControl.apply(this, arguments);
   	if (sProperty === "displayFormat") {
   		var oControlBindingInfo = merge({}, oBindingInfo);
   		this._oControl.bindProperty("displayFormat", oControlBindingInfo);
   	}
   };


   If customer want to bind value or editable to other property of the UI5 control, please not call the bindPropertyToControl of VizBase.

   ShapeSelect.prototype.bindPropertyToControl = function (sProperty, oBindingInfo) {
   	if (sProperty === "editable") {
   		var oControlBindingInfo = merge({}, oBindingInfo);
   		this._oControl.bindProperty("enabled", oControlBindingInfo);
   	}
   	if (sProperty === "value") {
   		var oControlBindingInfo = merge({}, oBindingInfo);
   		this._oControl.bindProperty("selectedKey", oControlBindingInfo);
   	}
   };


5. Use the new class as visualization type of the property in Configuration

   "dateRange": {
   	"manifestpath": "/sap.card/configuration/parameters/dateRange/value",
   	"type": "string",
   	"label": "Date Range",
   	"displayFormat": "yyyy/MM/dd",
   	"visualization": {
   		"type": "sap/ui5/test/cardeditor/listcard/viz/CustomDateRangeSelection",
   		"settings": {
   			"value": "{currentSettings>value}",
   			"editable": "{currentSettings>editable}",
   			"displayFormat": "{currentSettings>displayFormat}"
   		}
   	}
   },


Try it Out

Create fragment xml and controller files

Another way to implement this is using fragment.

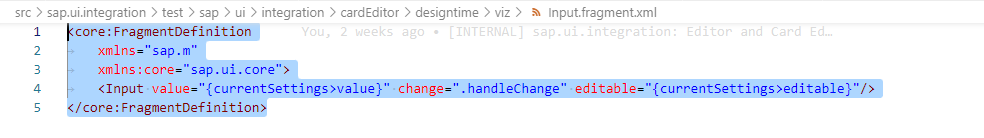

1. Create fragment xml view file



   Use the UI5 Controls in the xml file, and the data models: "currentSettings", "items", "i18n", "context", "contextflat" and undefined.

2. Create controller.js File which extends sap.ui.integration.editor.fields.fragment.Controller

   sap.ui.define([
   	"sap/ui/integration/editor/fields/fragment/Controller"
   ], function(Controller) {
   	"use strict";

   	var InputController = Controller.extend("sap.ui5.test.cardeditor.listcard.viz.Input", {
   	});

   	return InputController;
   });


3. Implement the init function and the event handlers

   InputController.prototype.init = function () {
   	this._aa = "aa";
   };

   InputController.prototype.handleChange = function (oEvent) {
   	//add current change into translation texts
   	var oControl = oEvent.getSource();
   	var sValue = oControl.getValue();
   	this.saveValue(sValue);
   };


   In the init function, please define the needed properties.

   In the event handlers, if want to save the value, please call the saveValue function

4. Use the fragment as visualization.fragment in Configuration

   "cardTitle": {
   	"manifestpath": "/sap.card/configuration/parameters/cardTitle/value",
   	"type": "string",
   	"translatable": true,
   	"required": true,
   	"label": "Card Title",
   	"allowDynamicValues": true,
   	"editableToUser": false,
   	"visibleToUser": true,
   	"description": "Card Title",
   	"cols": 1,
   	"visualization": {
   		"fragment": "sap/ui5/test/cardeditor/listcard/viz/Input"
   	}
   }


Try it Out
